Applications :

• The cables are designed for limited fi re hazard applications for internal use within stations, buildings and equipment rooms.

Standards :

• LUL Spec G7623 A2

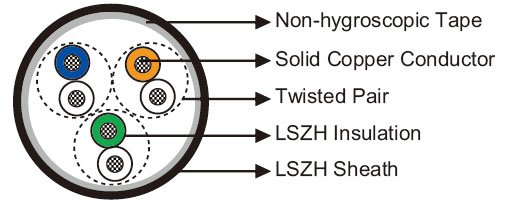

Construction :

• Conductors : Tinned annealed solid copper, 0.5/0.6/0.63 mm nominal diameter.
• Insulation : LSZH Insulation.
• Cabling Element : Two insulated conductors are twisted together to form a pair.
• Stranding : Cables are composed of unit stranding.
• Core Wrapping : Non-hygroscopic plastic tape with overlapping.
• Outer Sheath : LSZH sheath.


Electrical Characteristics at 20 °C :

• Nominal Conductor Diameter	mm	0.5	0.6	0.63
  Maximum Conductor Resistance	Ω/km	98	68	58
  Minimum Insulation Resistance @500 V DC	MΩ.km	120	120	120
  Maximum Average Mutual Capacitance @1KHz	nF/km	80	80	80
  Maximum Average Capacitance Unbalance @800Hz pair-to-pair		500	500	500
  Test Voltage AC 1min	V	500	500	500

Mechanical and Thermal Properties :

• Minimum Bending Radius : 7.5×OD.
• Temperature Range : -30°C to +70°C (during operation); -10°C +55°C (during installation).

Core Identification :

• Colour scheme, unit binder colour and cable make-up according to G7623

Dimensions and Weight :



Cable Code	No. of pairs	Minimum Sheath Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
0.5mm Conductor, 0.82mm Insulated Wire
RS7623A2-HH-1P0.5	1	1.3	6.0	30
RS7623A2-HH-2P0.5	2	1.3	7.0	45
RS7623A2-HH-3P0.5	3	1.4	7.0	50
RS7623A2-HH-6P0.5	6	1.5	9.0	61
RS7623A2-HH-10P0.5	10	1.6	11.0	107
RS7623A2-HH-20P0.5	20	1.9	14.0	190
RS7623A2-HH-40P0.5	40	1.9	16.0	320
RS7623A2-HH-80P0.5	80	2.2	23.0	640
RS7623A2-HH-100P0.5	100	2.2	25.0	760
RS7623A2-HH-160P0.5	160	2.6	29.0	1150
0.6mm Conductor, 1.12mm Insulated Wire
RS7623A2-HH-1P0.6	1	1.4	6.0	35
RS7623A2-HH-2P0.6	2	1.4	7.0	50
RS7623A2-HH-3P0.6	3	1.5	7.0	60
RS7623A2-HH-6P0.6	6	1.6	9.0	85
RS7623A2-HH-10P0.6	10	1.7	11.0	145
RS7623A2-HH-20P0.6	20	2.2	14.0	245
RS7623A2-HH-40P0.6	40	2.2	18.0	410
RS7623A2-HH-80P0.6	80	2.8	25.0	830
RS7623A2-HH-100P0.6	100	2.8	27.0	980
RS7623A2-HH-160P0.6	160	3.2	33.0	1450
0.63mm Conductor, 1.15mm Insulated Wire
RS7623A2-HH-1P0.63	1	1.4	5.5	40
RS7623A2-HH-3P0.63	3	1.5	7.3	70
RS7623A2-HH-5P0.63	5	1.6	8.5	89
RS7623A2-HH-6P0.63	6	1.6	8.9	100
RS7623A2-HH-10P0.63	10	1.7	11.1	170
RS7623A2-HH-12P0.63	12	1.7	11.6	195
RS7623A2-HH-160P0.63	160	3.2	35.0	1595





Mineral Oil Resistant	Rated voltage	Buried in Ciround	Laid In Ducts





PVC Sheath

Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1





LSZH Sheath

Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1 Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266 Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1 Low Toxicity         Low Smoke Emission IEC 61034/NFC20-902 EN 50268/NF C32-073 Low Corrosivity EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453
